Leírás

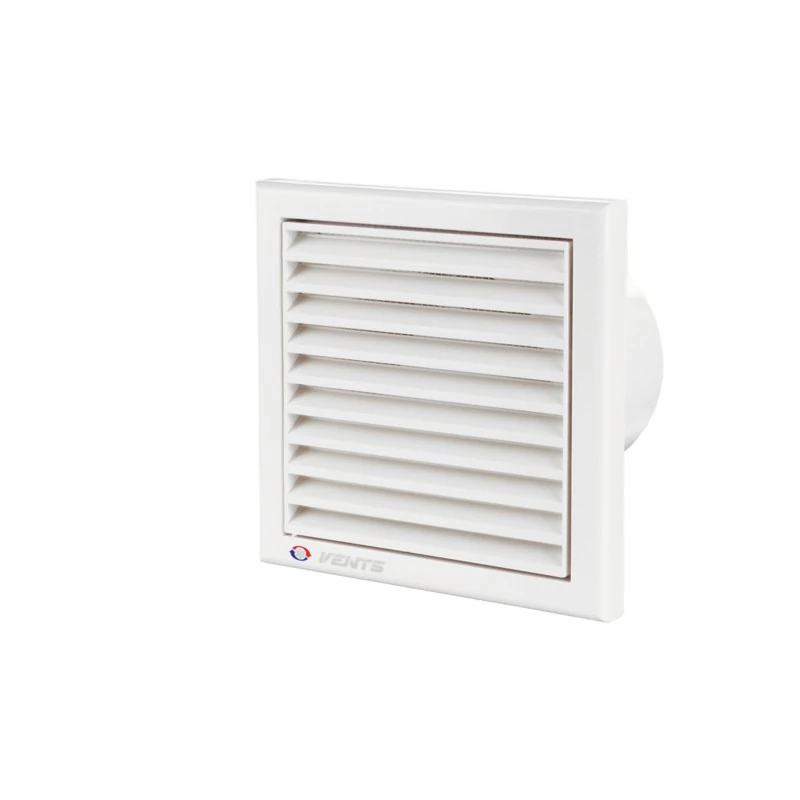

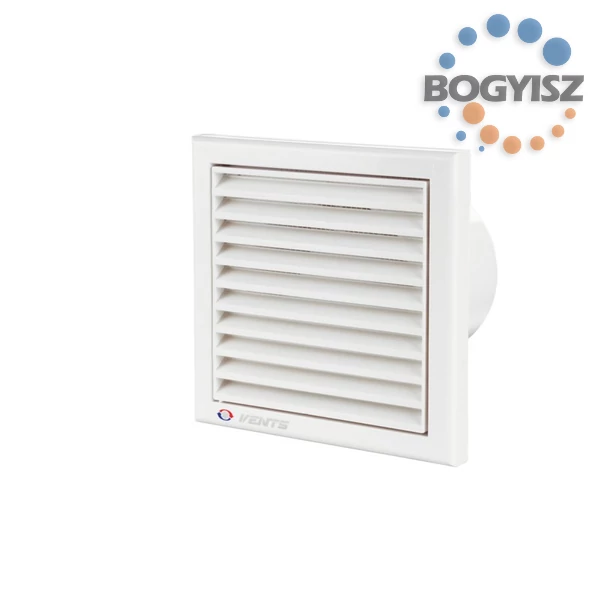

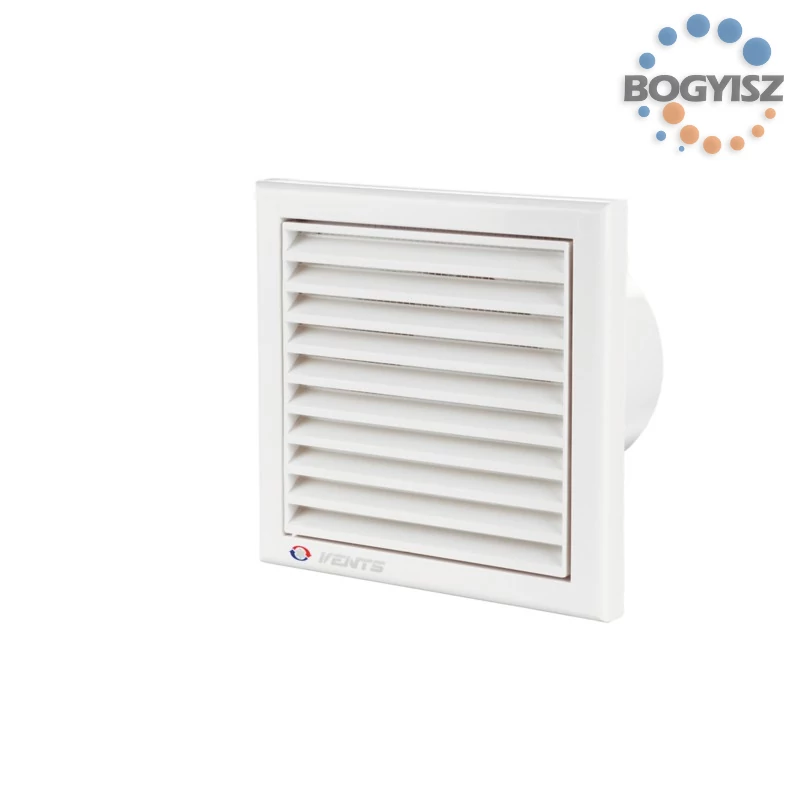

VENTS 100 K FALI AXIÁLIS VENTILÁTOR
Parameter |
Value |
Unit |
|
---|---|---|---|
Voltage |
220-240 |
V |
|
Frequency |
50/60 |
Hz |
|
Power |
14 |
W |
|
Air capacity |
95 55,955 26,41 0,02641 1586,5 |
m³/h CFM l/s m³/s l/m |
|
Current |
0.085 |
A |
|
RPM |
2300 |
min -1 |
|
Sound pressure level at 3 m |
34 |
[dBA] |
|
Weight |
0.53 |
kg |
|
Protection rating |
IP 34 |
class |
|
Spigot size |
100 |
mm |
|
Engine Type |
220-240V / 50-60Hz |
Sizes |
∅D |
B |
H |
L |
L1 |
---|---|---|---|---|---|
mm |
100 |
154 |
110 |
105 |
15 |
